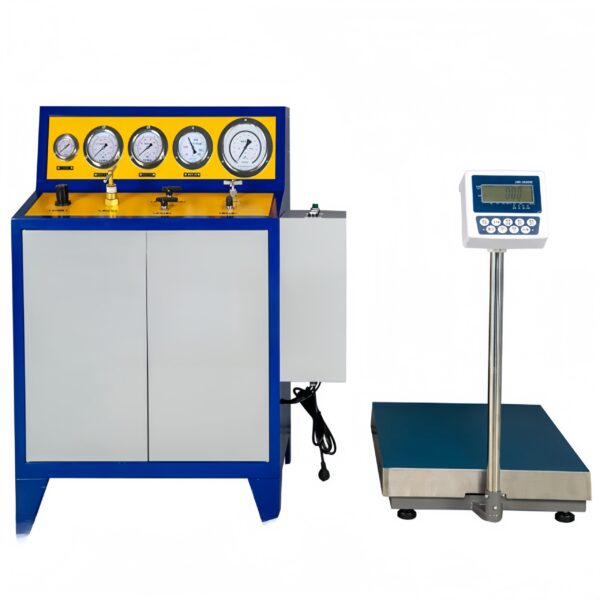

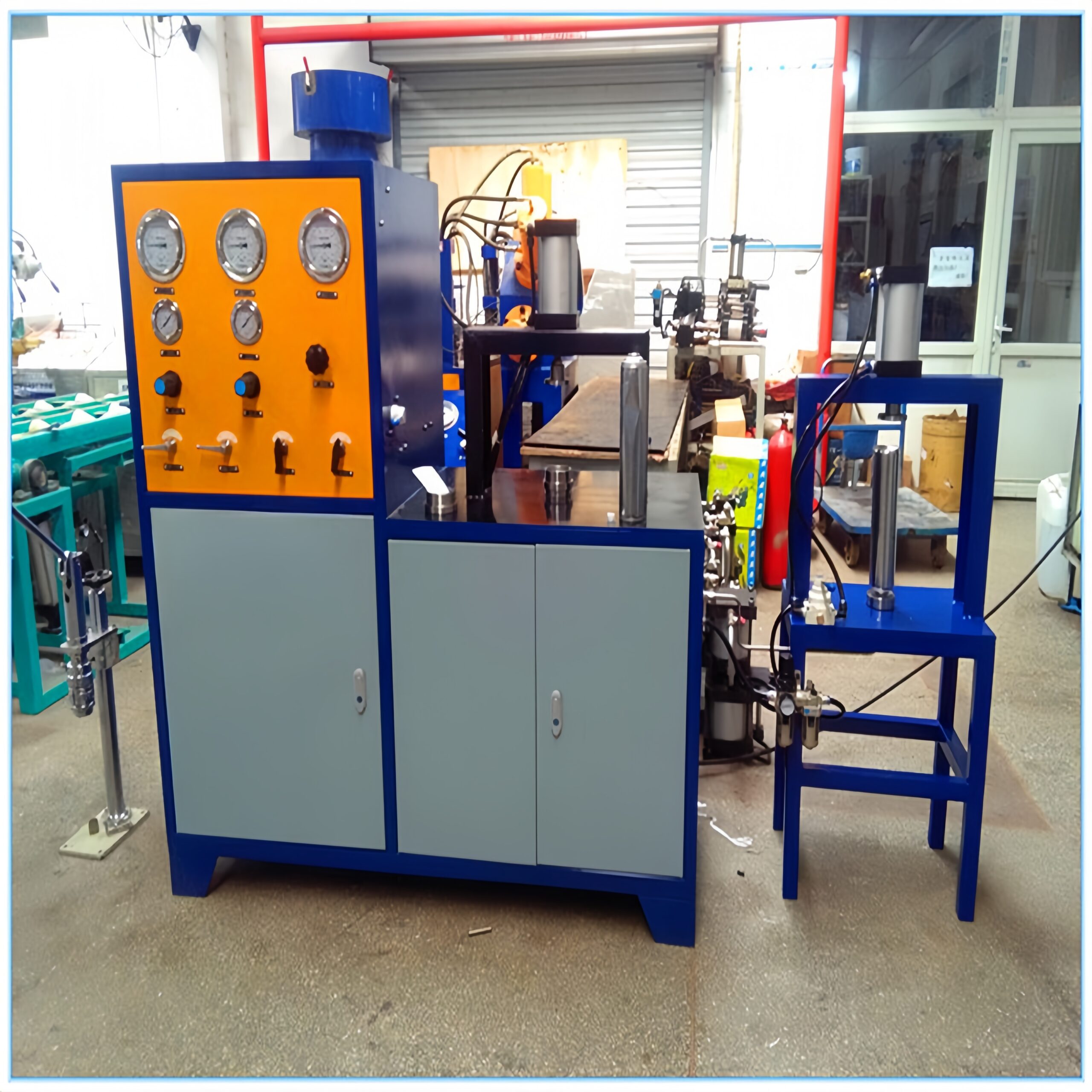

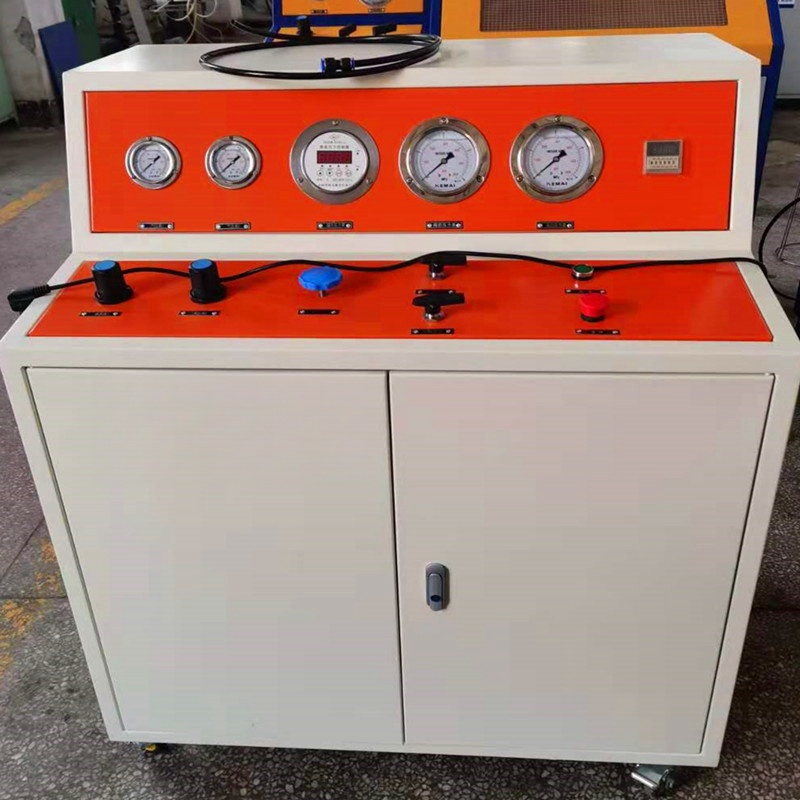

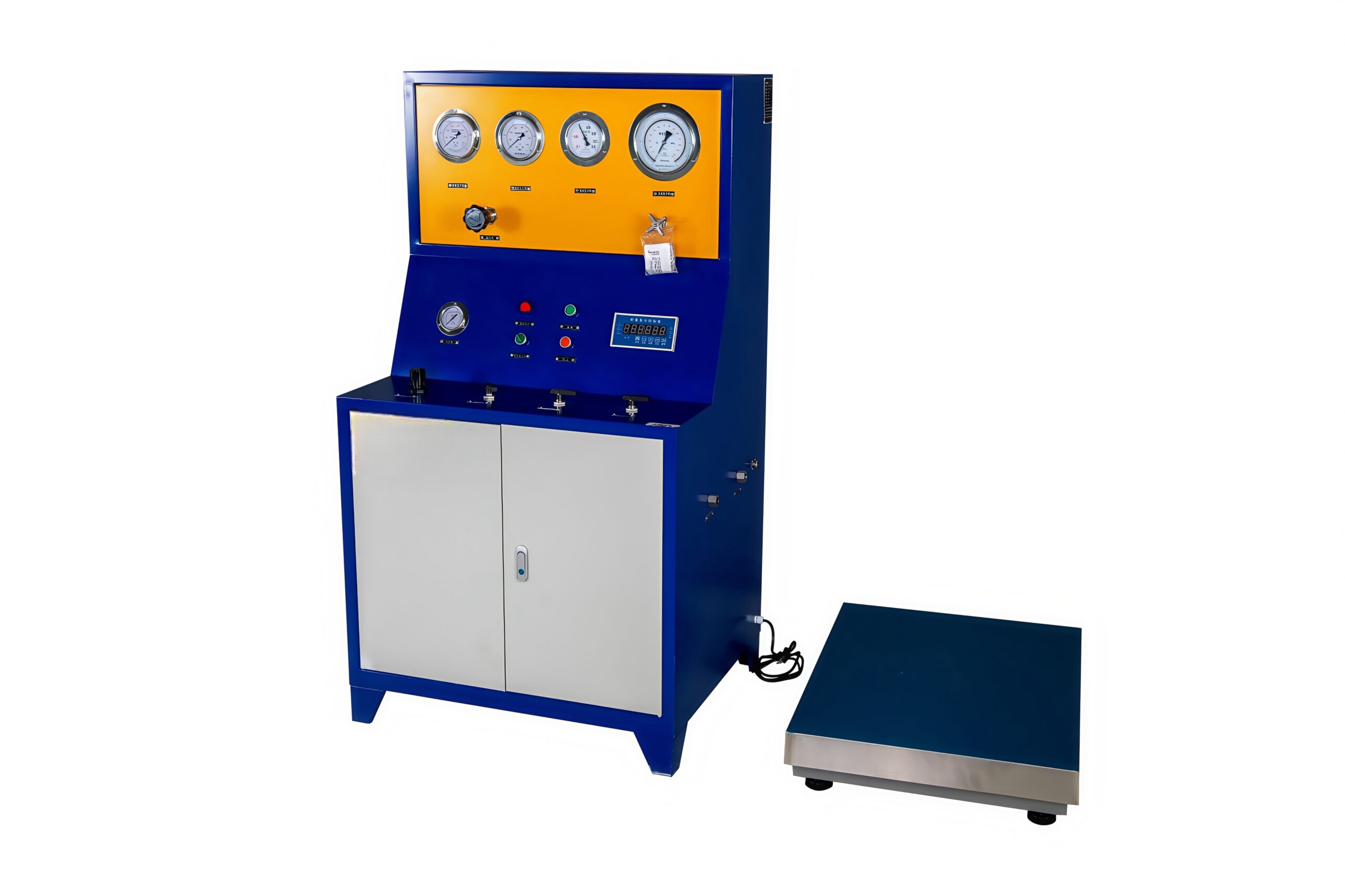

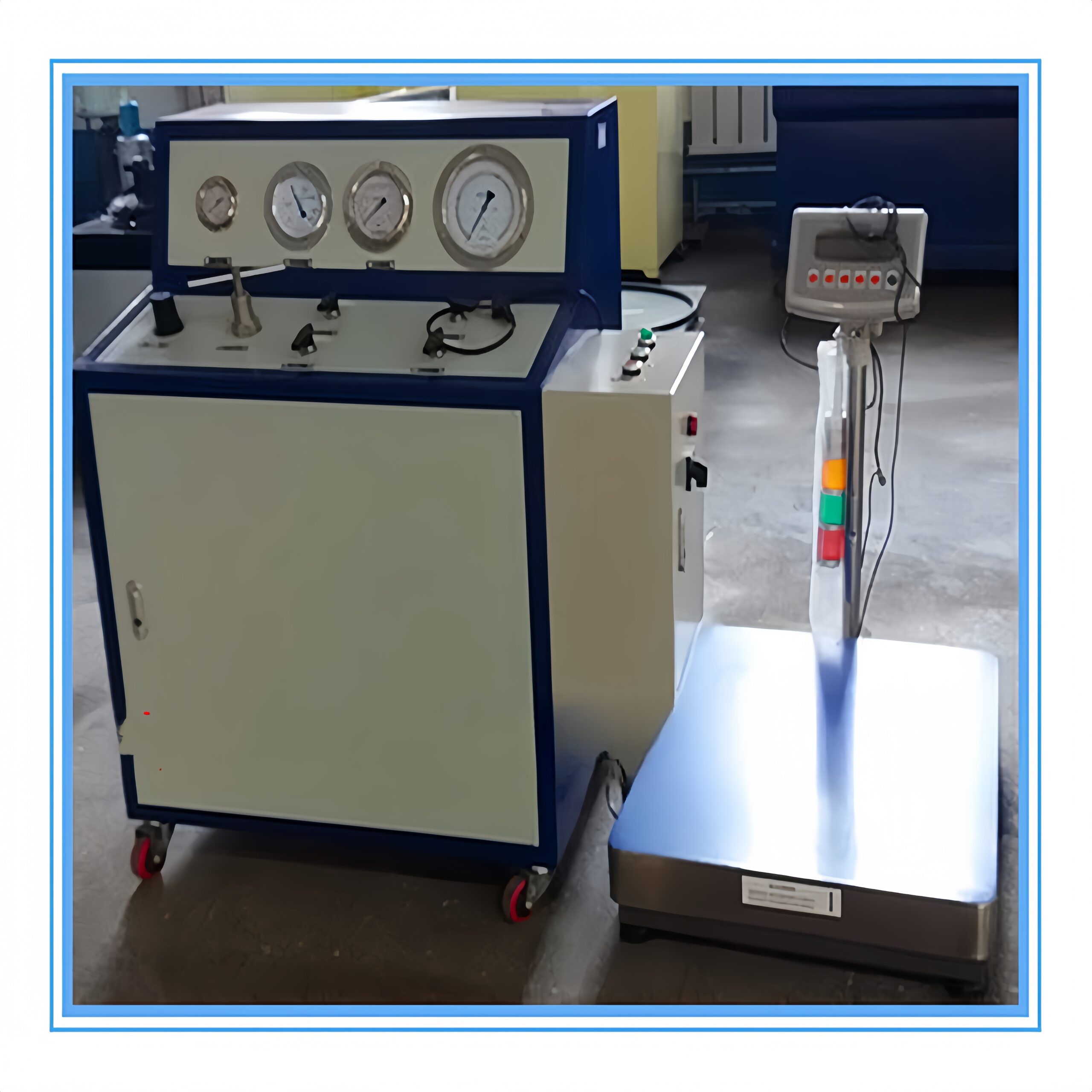

Perfluorohexanone filling equipment

The filling system uses compressed air as the power source. Through the pneumatic booster pump, the agent is driven by proportional and automatic reversing reciprocating pressurization at high pressure for transportation and filling, which greatly improves the filling speed. The electronic scale can set the filling weight. When the delivery flow reaches the set value, a signal is transmitted to the filling high-pressure pneumatic ball valve through the flowmeter, and the valve is automatically closed to stop the filling. For vacuuming, a large-flow vacuum pump with a flow rate of 1 L/S is used to quickly achieve vacuum in the filling bottle, improving the filling speed and the purity of the agent. When filling with nitrogen, it first passes through the pressure reducing valve to reduce to the required pressure to improve the filling stability and prevent overshoot. Open the nitrogen valve to inject nitrogen and observe the pressure gauge. When the set pressure is reached, close the nitrogen valve, and the entire filling process is completed.
